SDI-12 Converter
Connect NICO, NICO plus, or OPUS to SDI-12 dataloggers

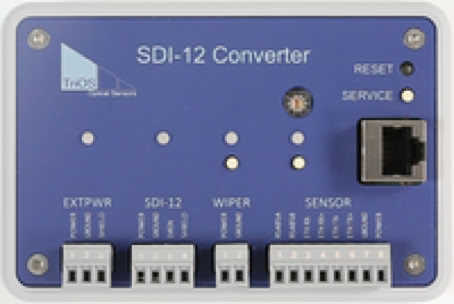

SDI-12 Converter
Connects NICO, NICO plus, or OPUS to any SDI-12 compatible datalogger. Converts the Modbus protocol used by TriOS sensors into SDI-12 communication.
- Converts Modbus RTU (TriOS) to SDI-12 for datalogger integration
- Low standby power (<20 mW) — ideal for battery-powered operation
- Three manual buttons: Sensor Scan, Wiper Cleaning, and Service Mode
- Rotary encoder sets the sensor SDI-12 address
- Compatible with NICO, NICO plus, and OPUS
- Part number: 11C100001
| Spec | Value |
|---|---|
| Part Number | 11C100001 |
| Power Supply | 12 to 24 Volts (included) |
| Power Consumption | < 20 mW standby |
| Connector | RJ45 |
| IP Rating | IP30 / NEMA1 |
| Dimensions | 4.7" × 3.2" × 1.8" |
| Warranty | 1 year |
| Compatible With | NICO, NICO plus, OPUS |

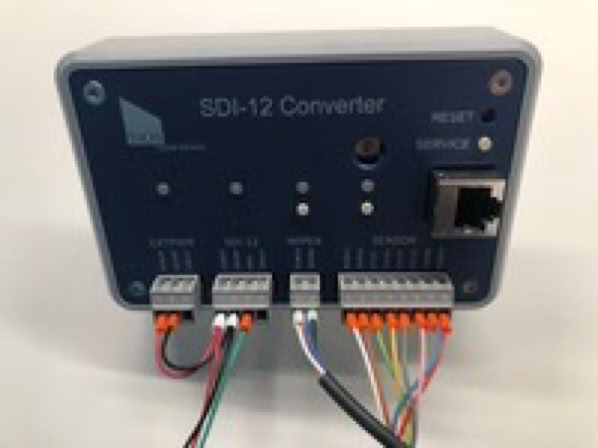

Recommended Wiring for the SDI-12 Converter
Connect EXTPWR, SDI-12, WIPER, and SENSOR terminals as shown above.
