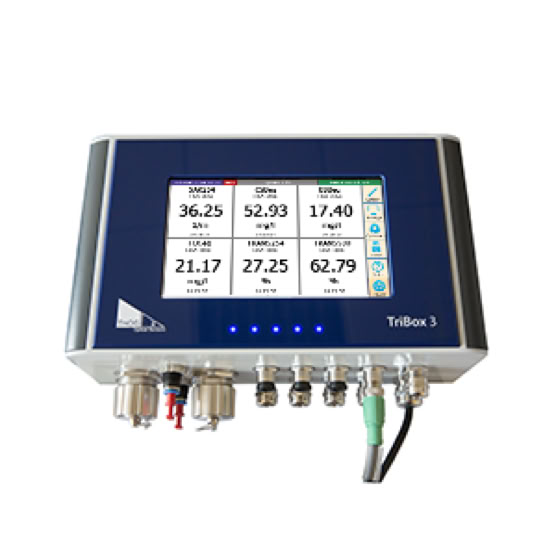

TriBox 3
4-channel display and control unit for NICO, NICO plus, and OPUS
TriBox 3
4-channel display and control unit with integrated solenoid valve for compressed air cleaning. Designed for NICO, NICO plus, and OPUS in environmental monitoring, drinking water, and wastewater applications.
- 4 sensor channels with selectable RS-232 or RS-485 interface
- Modbus-RTU plus various additional protocols supported
- Built-in solenoid valve for compressed air sensor cleaning
- IEEE 802.3 Ethernet interface
- IEEE 802.11 b/g/n WiFi interface
- USB port
- 6 analog outputs (4–20 mA)
- Integrated relay for alarms or external device control
- Robust aluminum housing — low power consumption
- Ideal for environmental monitoring, drinking water, and wastewater
| Spec | Value |
|---|---|
| Sensor Channels | 4 |
| Interface | RS-232 or RS-485 (selectable) |
| Protocol | Modbus-RTU + additional protocols |
| Ethernet | IEEE 802.3 |
| WiFi | IEEE 802.11 b/g/n |
| USB | Yes |
| Analog Outputs | 6 × 4–20 mA |
| Relay | 1 integrated relay |
| Valve | Integrated solenoid valve (compressed air cleaning) |
| Housing | Aluminum |
| Compatible With | NICO, NICO plus, OPUS |
